The Kinghitter Series 2 is an incredibly versitile machine that can be configured in many different ways to suit your fencing requirements. With 4 different mast options, 3 hammer options, 10 base options, 3 leg options plus a mulitude of accessories available, the series 2 can be either a simple, rugged rear mount postdriver for a farmer, or fully kitted out as a fencing contractors rig. See below for the complete options list:

---

Mast

• S2 400 - 4m Rigid Mast
• S2 430 - 4.3m Rigid Mast
• S2 430HH - 4.3m Hydraulic Hinge Mast
• S2 290HH - 4.9m Hydraulic Hinge Mast

Hammer Weight

• 250kg Hammer
• 270kg Hammer
• 300kg Hammer

Bases

• 3 Point Linkage Base
• 300mm Mast Shift
• 400mm Mast Shift
• Fixed Side Mount Base
• Terminator Side Mount Base - 950mm Shift
• SuperPro Side Mount Base - 1000mm Shift
• Dominator Rotational Base

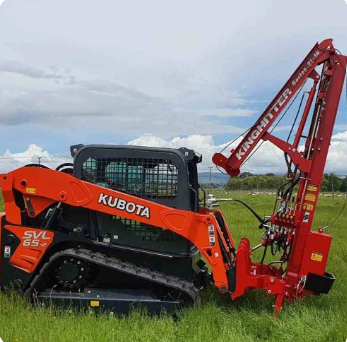

• Skid Steer Base
• Excavator Base
• Series 5 180 Degree Rotational Base

Legs

• Adjustable Legs
• Hydraulic Legs
• Leg Roller Kit

Auger

• Ram Pilot Auger Kit - Includes Mounting Kit, Ram & 250cc Motor
• 3" RH Auger - Tungston Rock Pilot Only
• 4" RH Auger - Option of Hard Faced Dig Pilot or Tungston Rock Pilot
• 5" RH Auger - Tungston Rock Pilot Only
• 6" RH Auger - Option of Hard Faced Dig Pilot or Tungston Rock Pilot
• 8" RH Auger - Option of Hard Faced Dig Pilot or Tungston Rock Pilot
• 10" RH Auger - Option of Hard Faced Dig Pilot or Tungston Rock Pilot

Torque Drill

• Torque Drill Motor + Mounts + Rockspike Extractor with Hydraulic Rotator (Excl Rockspike & Augers)
• 100mm LH Rock Auger
• 150mm LH Rock Auger

Rock Spike

• Rockspike Extractor Kitset & Heavy Duty Post Cap
• Rockspike Extractor Kitset & Heavy Duty Post Cap with Hydraulic Rotator
• 90mm Rockspike
• 130mm Rockspike

Auger + Rockspike Extractor Combo

• Auger + Rockspike Extractor Combo Kit (Excl Rockspike & Augers)

Valves

• 2nd Tier & 3rd Tier Valves + Mounts

• 150UC 4.3metre Hydraulic Hinge Mast
• 270kg hammer producing up to 36,800kgs of Driving Force.
• 300mm Mast Shift with Nylon slides
• Terminator Base with 950mm side shift, Toolbox and tool holders, drawbar etc
• 6 Bank high Flow valve with in/out adjustment on the bank
• Transport height when folded is 3.1 metres
• 3.3 metres under the postcap

The Series 2 400 is a capable, simple to use postdriver with a heavy duty construction.  The fixed mast manufactured from premium 350 grade steel provides the ultimate in strength and regidity, and will withstand generations of hard work. The S2 400 is also completely accessory ready, which means that at any point in its lifespan, kinghitter accessories such as a rockspike or auger can be added on, or mounted to other bases.

Key Specs Include:

• Easily Mounts to 3 point linkage
• 4m 150UC Fixed Mast
• 250kg Hammer
• 4 bank Valve (1 spare)
• Hydraulic Toplink
• Hydraulic Angle Adjustment
• Upgrade options available (see "build your own" section).

• Easily Mounts to 3 point linkage
• 4m 150UC Fixed Mast
• 250kg Hammer
• 4 bank Valve (1 spare)
• Hydraulic Toplink
• Hydraulic Angle Adjustment
• Upgrade options available (see "build your own" section).

This model takes the S2 400 and adds the Kinghitter Mast Shift. This provides 300mm of sideways travel when mounted directly behind the tractor. This allows for more accurate post placement, especially when straddling the guide wire.  The movement is silky smooth thanks to the plastic inserts on the slides. These inserts are adjustable and replaceable so this unit will never get sloppy from wear. Requires one valve to operate the hydraulic ram. Highly recommended to be included with the Terminator base for 4 way movement. Makes fencing with only one person a breeze. Fast, easy and accurate post placement.

• Easily Mounts to 3 point linkage
• 4m 150UC Fixed Mast
• 250kg Hammer
• 4 bank Valve (1 spare)
• Hydraulic Toplink
• Hydraulic Angle Adjustment
• Upgrade options available (see "build your own" section).

The Kinghitter Series 2 Rockspike Combo is a specified setup designed for use in rocky ground conditions, a proven performer, especially in Canterbury and other locations that have predominantly loose stones close to the surface.  It recieves a upgraded mast height, hammer weight and also includes Kinghitter's proven rockspike extractor kit and 90mm rockspike.  Whilst the Spike does the job – the Extractor is just as important as the spike takes a huge amount of force to pull back out of the ground. The 8 tonne lift from the hydraulic ram on the Extractor provides the nessasary power to remove the spike day in, day out.

• Upgraded 4.3 metre rigid mast gives additional hit for rockspike & strainers.
• Upgraded 270kg Hammer
• 50mm Heavy Duty Postcap
• 4 Bank Valve
• Rockspike Extractor Kit
• 90mm Rockspike
• Height adjustable legs give increased distance under the post cap – this gives more hit on strainers
• An incredibly robust and versatile postdriver for a wide range of fencing conditions.

The Kinghitter Series 2 400 Terminator Combo is a heavy duty and highly capable side mounted post driver. Its rugged 4.0m 150UC mast, manufactured from premium 350 grade steel, provides the ulitimate in strength and simplicity. The terminator base provides not only a wealth of accessory mounts and a large tool box, but also gives the unit a massive 950mm of side shift. Simple drive alongside your fence or guidewire, and with the push of a lever, the postdriver will slide into line. The terminator base also includes a 230kg counterweight, so the the rig is perfectly balanced on steep or undulating terrain.

• Series 2 400 Rigid Mast
• 250kg Hammer
• Terminator Base 950mm side shift, Toolbox and tool holders, drawbar etc
• 4 Bank high Flow valve with in/out adjustment on the bank
• Adjustable Feet
• 3.0 metres under the postcap
• Accessory Ready

The Kinghitter Series 2 430 Terminator/Mastshift Combo is the perfect package when it comes to side mounted postdrivers. The combination of 950mm side shift from the Terminator base and 300mm Mastshift allows the mast to have 4-way movement - a must have if you are fencing by yourself. The hydraulic hinge mast takes only seconds to lower to the transport position, or raise and lock in the working position. A ball valve ensures there isn’t any creep while the mast is up and in use. The 300mm mast shift has adjustable and replacable nylon inserts, which ensures incredibly smooth operation. This means the mast shift will always be as tight as the day it was purchased. The Kinghitter Series 2 Terminator/Mastshift Combo is a world class machine – right at the top of its game and capable of handling all day fencing every day without flinching. Completely New Zealand made using the best materials, componentry and technology to have owners secure in the knowledge they own a machine that can easily be passed on to the next generation.

• 150UC 4.3metre Hydraulic Hinge Mast
• 270kg hammer producing up to 36,800kgs of Driving Force.
• 300mm Mast Shift with Nylon slides
• Terminator Base with 950mm side shift, Toolbox and tool holders, drawbar etc
• 6 Bank high Flow valve with in/out adjustment on the bank
• Transport height when folded is 3.1 metres
• 3.3 metres under the postcap
