Rata 103 & 812 Maxitills

Rata 103 & 812 Maxitills

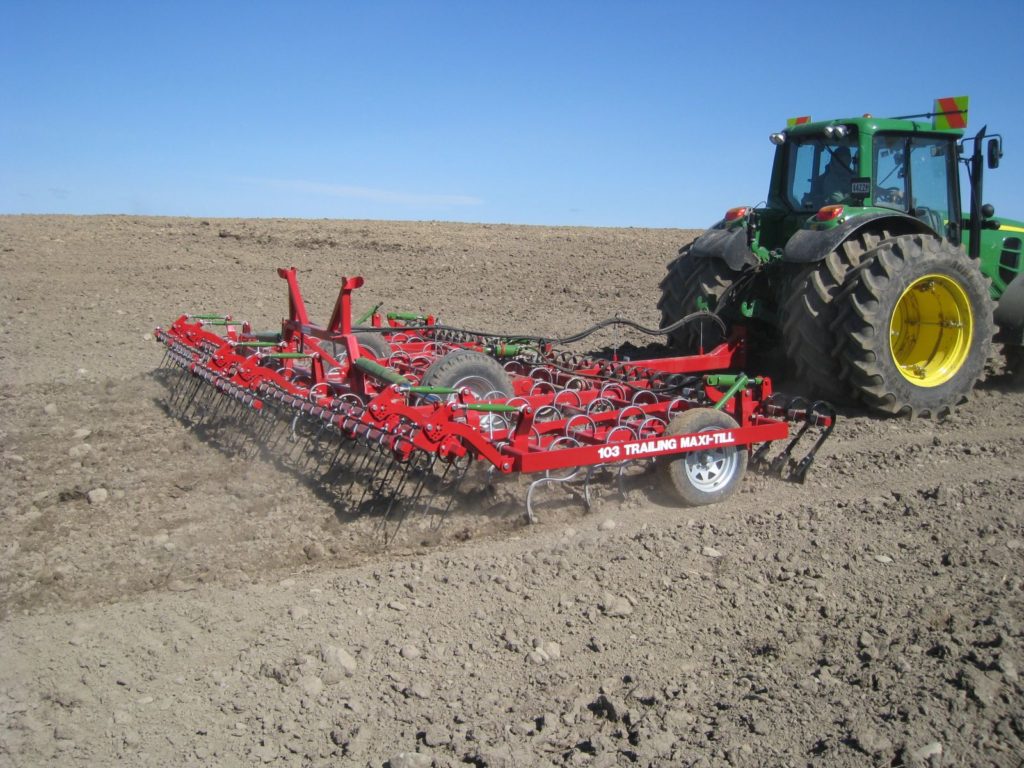

A trailing maxitill with ‘ no equal’ to its robust construction and correct placement of componentry, giving it maximum strenght at stress points. The massive main beam that runs throughout its length, as well as the floating contour following wings, allow for complete coverage of ground while standing up to the toughest conditions. the closely spaced, constantly vibrating ‘S’ tines motivate a highly effective method of cultivation, whilst the levelling action of the rear crumblers create fast, efficient seed bed preparation that cannot be matched.

The 812 trailing maxitill is designed for the greater trash clearance. The 50x 10mm tines with Ni- hard points are spaced at 125mm apart giving excellent trash flow, combined with the heavy flat – bar crumblers you get a smooth finished in record time. the heavier 65x65x6mm box section gives greater strenght through out the frame while the floating contour following wings result in better weight distribution. overall doing a better job faster and saving on time, fuel and maintenance.

FEATURES AND BENEFITS

Rata 103 Maxitills

  • Heavy duty 40mm wing hinge pins
  • Depth control wing wheels
  • Crumbler overlap to eliminate ridging
  • All grease points accessible in transport position
  • Extra stagger between tines makes for improved trash clearance

Rata 812 Maxitills

  • Extra long drawbar
  • Main beam running the entire length giving extra strength
  • World leading "S" 50x10mm tines with Ni-hard point
  • Crumbler overlap to eliminate ridging
  • 125mm tine spacing for greater trash clearance

PRODUCT OPTIONS AND SPECS

Rata 103 Maxitills
103 18' TRAILING MAXITILL103 20' TRAILING MAXITILL103 22.5' TRAILING MAXITILL103 25' TRAILING MAXITILL103 30' TRAILING MAXITILL103 33' TRAILING MAXITILL
Working Width (M)/(Feet)5.5/186.1/206.8/22.57.6/259.1/3010/33
Number of Tines525864738897
Tine Spacing (mm)100100100100100100
Weight (Kg)2,0002,1002,2702,5002,7003,200
Rata 812 Maxitills
812 18' TRAILING MAXITILL - HD812 20' TRAILING MAXITILL - HD812 22.5' TRAILING MAXITILL - HD812 25' TRAILING MAXITILL - HD812 30' TRAILING MAXITILL - HD
Working Width (M)/(Feet)9.14/307.6/256.1/205.5/186.85/22.5
Number of Tines7060484454
Tine Spacing (mm)125125125125125
Weight (Kg)n/ana/n/an/an/a
